WiSig DIFFERENTIATORS
- Best-in-class own 5G PHY, L2/L3 with RIC and network simulator.
- Chipset neutral platform
- Can co-work with Third Party RU providers to establish inter-operability
- Enables Indian rural broadband use cases apart from urban public networks, critical and private networks.
Key Applications
- Urban Public Networks
- Rural Broadband Networks
- Railway Networks
- Critical Networks
- Private Networks
Key Deployment Scenarios
- Macro Cell
- Medium Cell
- Network in a Box
- Small Cell
Customization possibilities
- Market (Bands)
- Deployment (NSA/SA)
- New Feature Integration
- O-RAN compliance
- RU Vendor Integration
- Certifications
Key Specifications
| 3GPP NR Release | R 15 |
| Duplexing | TDD & FDD |
| Frequency Bands | <6GHz Band n78, n28 |
| Bandwidth | Up to 100 MHz |
| Subcarrier spacing | 15 KHz, 30 KHz |
| Max No of RBs | 273 |
| FFT Size | Up to 4096 |
| Waveform | CP-OFDM and DFT-S- OFDM (pi/2 BPSK LMLC |
| Modulation | Up to 256-QAM |

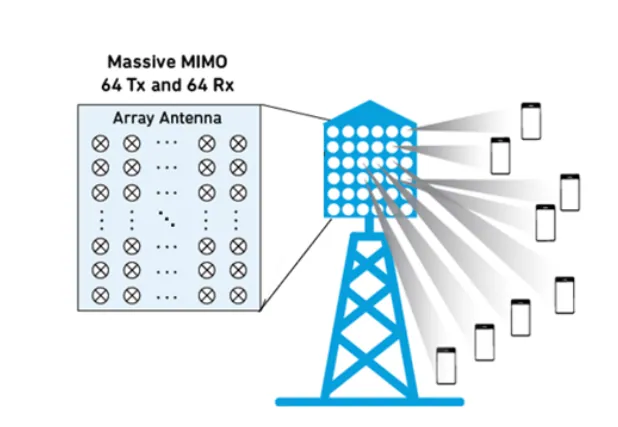

| Number of Layers | 2 in DL for SU-MIMO 2 in UL for SU-MIMO Higher Layer Massive MIMO in the roadmap |
| Antenna Capability | DL/UL 4 Antennas 64TR in the roadmap |
| Throughput | Up to 1 Gbps in DL and UL (Higer dates rates in the roadmap) |
| NSA Support | Yes |
| SA Support | Yes |
| CU Modules | L3 [NR RRC, NGAP, F1AP] CU RRM, CU OAM, CU PDCP |
| DU Modules | L2 [NR MAC, NR RLC], F1U, DU Manager, DU-OAM |
| OAM Support | Yes |
| RIC | Yes |
