What is Network in a Box ?

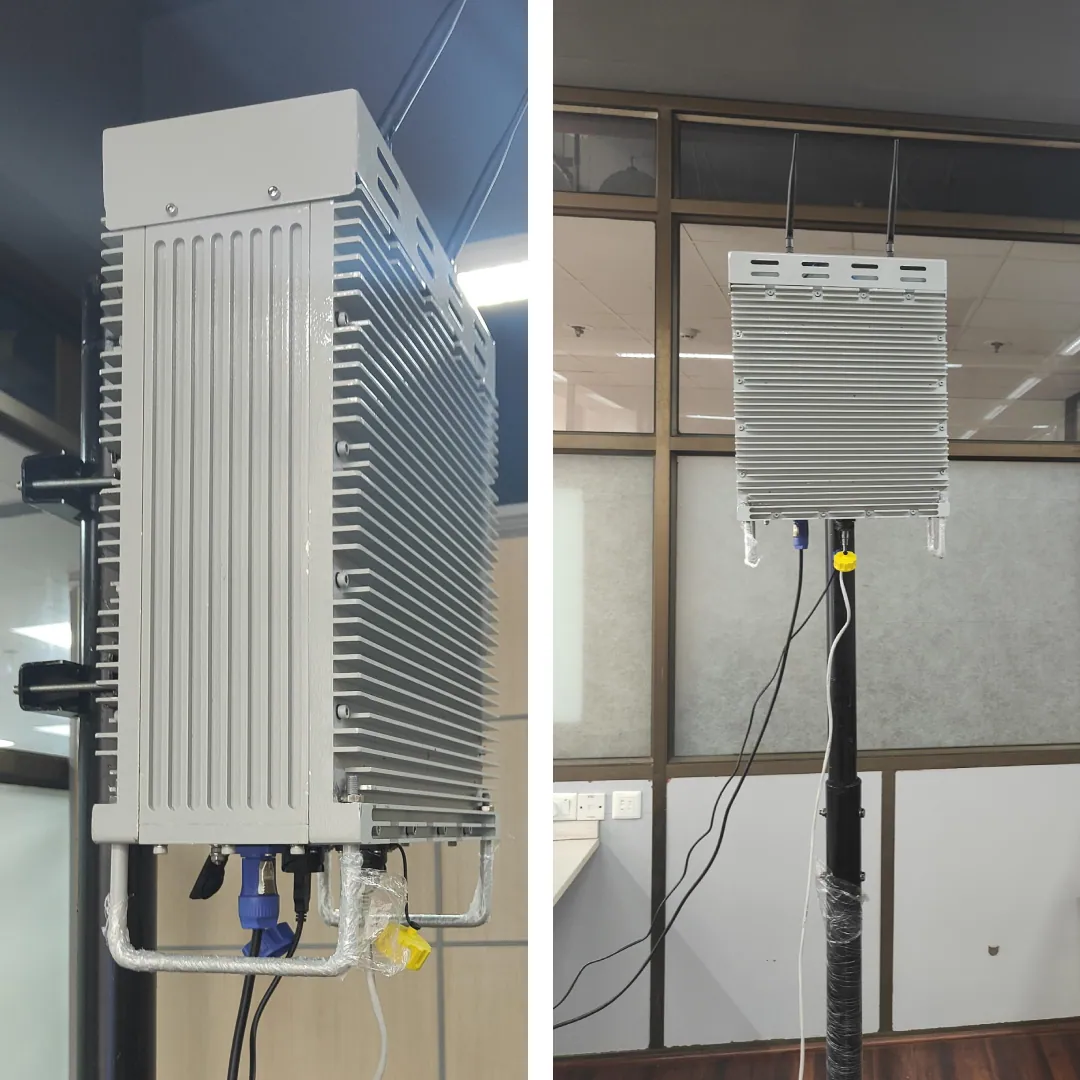

Network in a Box (NIB) is concept that
supports a ready-in-minutes portable
5G SA network solution. all the
hardware and software required to
support 5G stand-alone (SA), non-
stand-alone (NSA) or 4G LTE
operations are integrated into this
single unit. The NIB comes
integrated with a 5G Core, along with
an integrated gNodeB to provide
comprehensive support for voice,
text, video, and packet data services.
Key Deployment scenarios
- Critical networks
- Off Shore Sites
- PPDR
- Private Networks
Key Specifications
| System Parameter | Values |
|---|---|
| Band | n78, n28 |
| Power Supply | -48 V DC |
| Power Consumption | <250 W |
| Weight | <15 kg |
| Temperature | -40 C to 55C |
| Humidity | 0 to 95%, non-condensing |
| # Output Ports | 4T 4R |
| Output TX Power | 4 x 5W, 4 x 10W in roadmap |
| Antenna Type | Connected to RF front end AFE board via SMA/ Snap-On SMA connectors |
| Synchronization | GNSS/GPS/IEEE 1588-PTP |
| Management & debugging | 1 G Ethernet |
| Debug port | Serial port (Ethernet over USB) |
| Connectors | USB, JTAG (USB type), HDMI, UART (uUSB) |
| Intra-gNB connection | 10 G SFP+ |
| Switches | On/Off Switch with Indication Reset Switch |
| Electrical safety | UL 60950 - Ed.3 2000, EN 60950 Ed.2001, CSA C22.2 No 60950 |
| Environmental Conditions | ETSI EN 300 019-1-1 V2.2.1 |
| Mechanical | IEC 60297-3 |
| Inflammability | UL94 |
| Enclosure | Heat Sink on one side, Dielectric for Antenna Radiation on another side |
| Heat Sink Type | Convection/Fins/ Non-active cooling |
